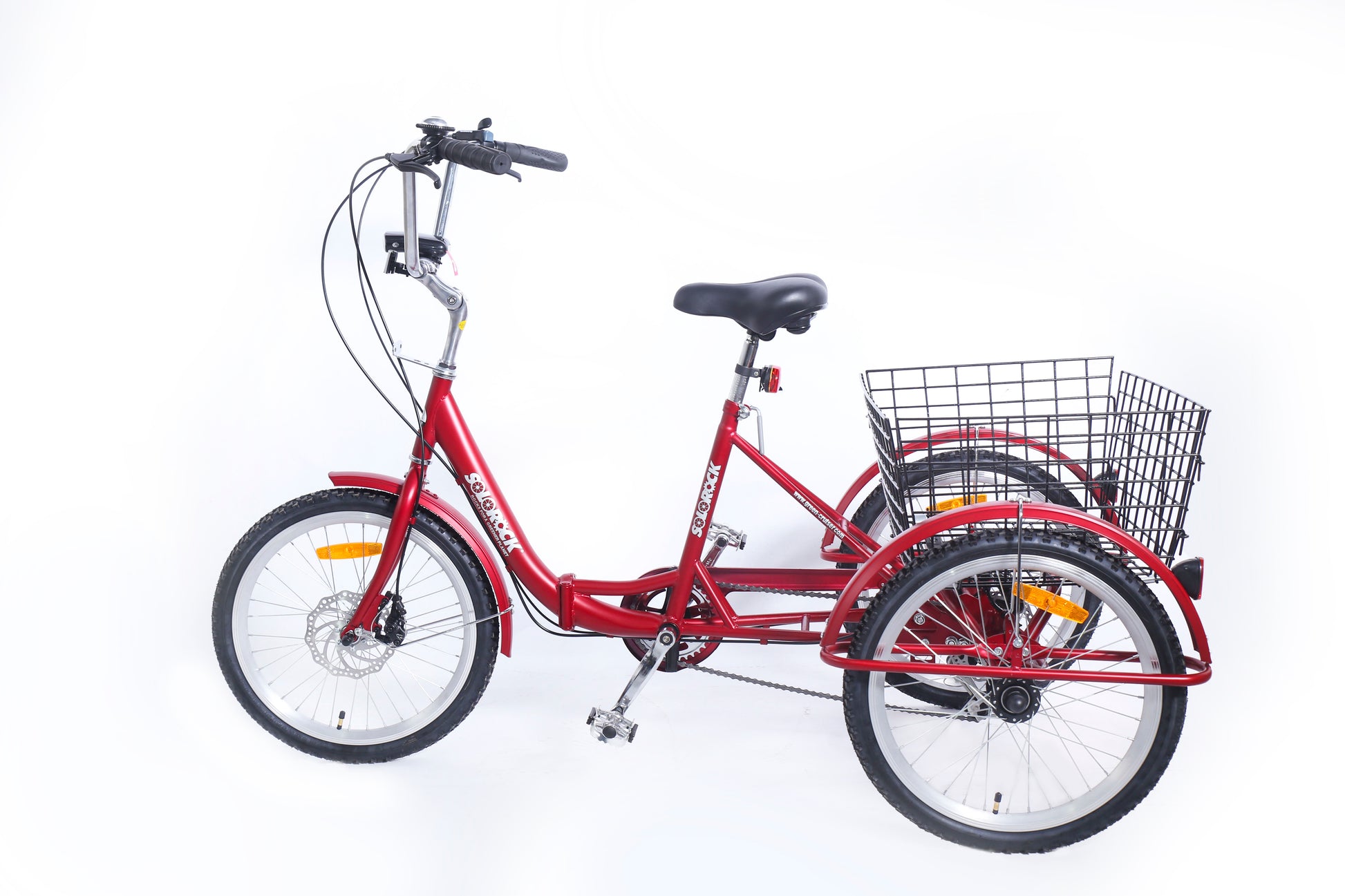

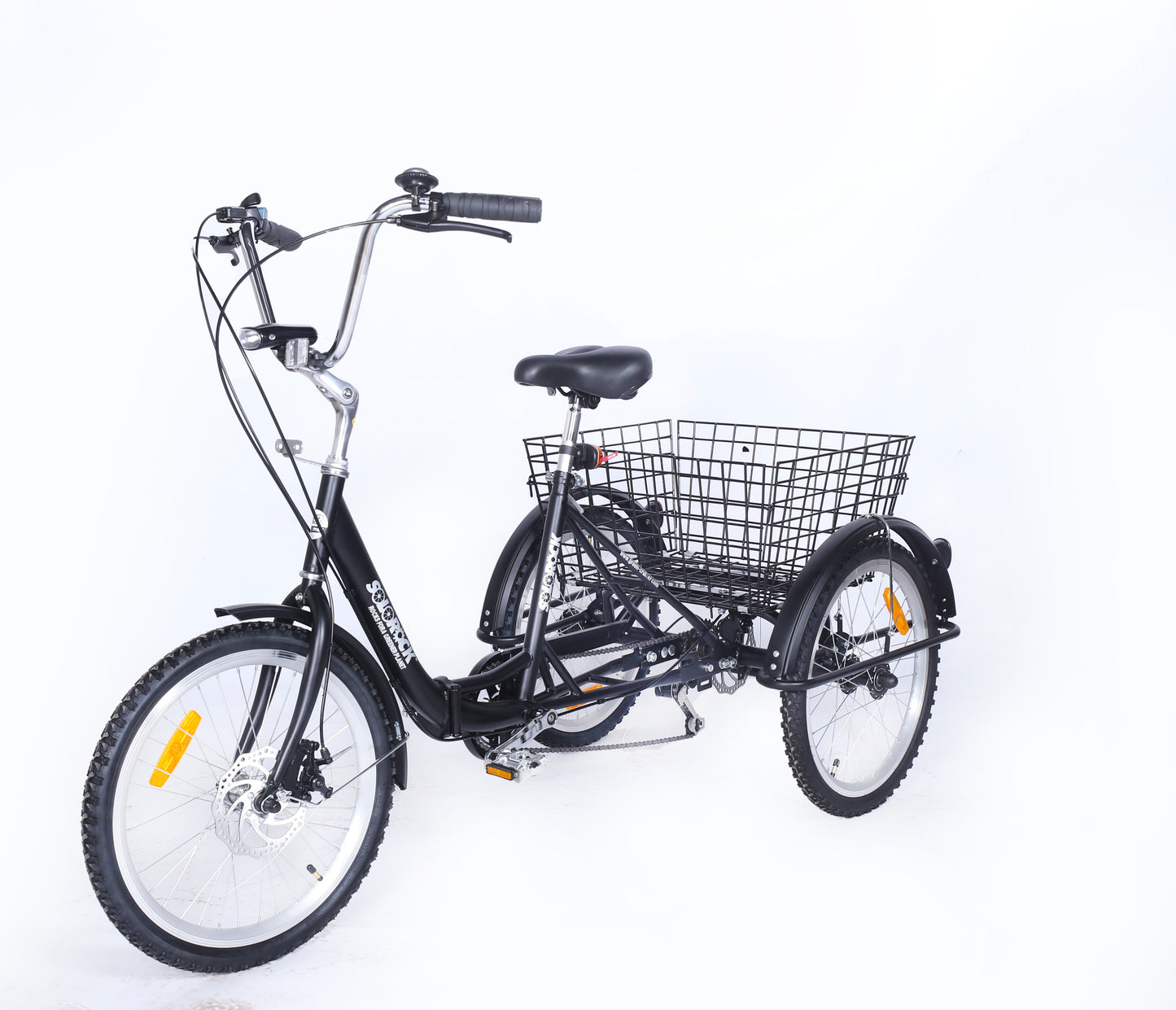

SOLOROCK 20" 6 Speed Folding Tricycle - Agile206-Fold

• Not Assembled - assembly can be completed by customers with extensive bike assembly experience, or at a local bike shop
• Disc brakes, front & rear
• 5 Color Options

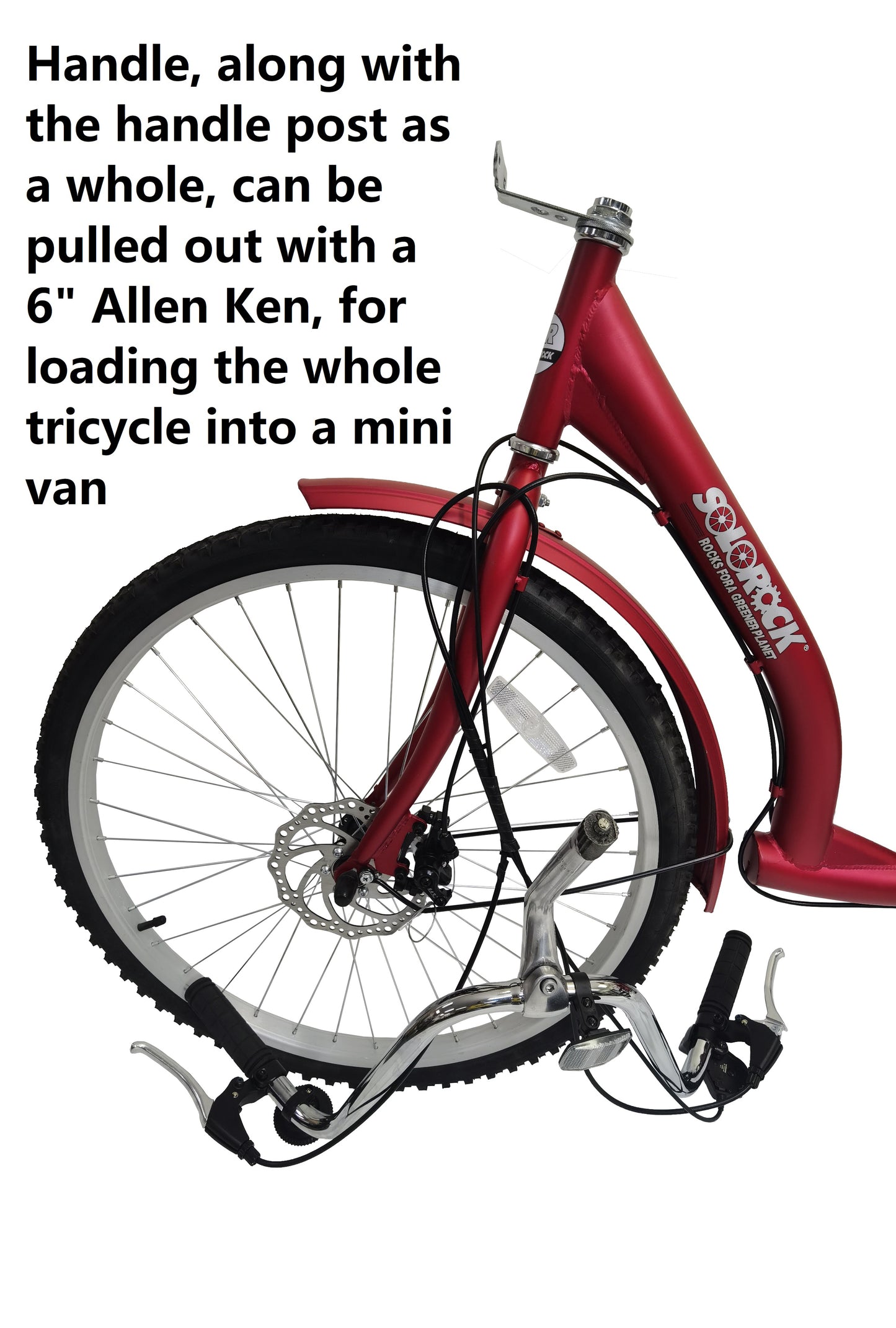

• Optional Handle Post Folder for easy access to mini van, SUV: https://solorock.ca/products/solorock-tricycle-handle-post-aluminum-folder?_pos=1&_sid=712a20dde&_ss=r

Model: Agile206 SRTS2006-Fold

Frame: 20" Steel (20" Wheel Size)

Speed: 6 Speed Shimano

Brand:

Tricycle Assembly Video link:

https://www.youtube.com/watch?v=NkazinNwbyI

Features:

• 20" Wheel, C-frame, Easy cross-over, with 6 Speed Shimano Gear
• Disc brakes, Front & Rear;
• Cartridge bottom bracket
• Optional Folding Handle Post - please order separately

Frame/Fork:

• 20” Steel

Brakes:

• Disc brakes, Front / Rear

Wheels:

• Rims: Double-walled Anodized 6061 Aluminum, Silver or BK

• Spokes: 36 x 14G High Tension Steel UPC
• Tires: 20” x 1.75” Kenda

Transmission:

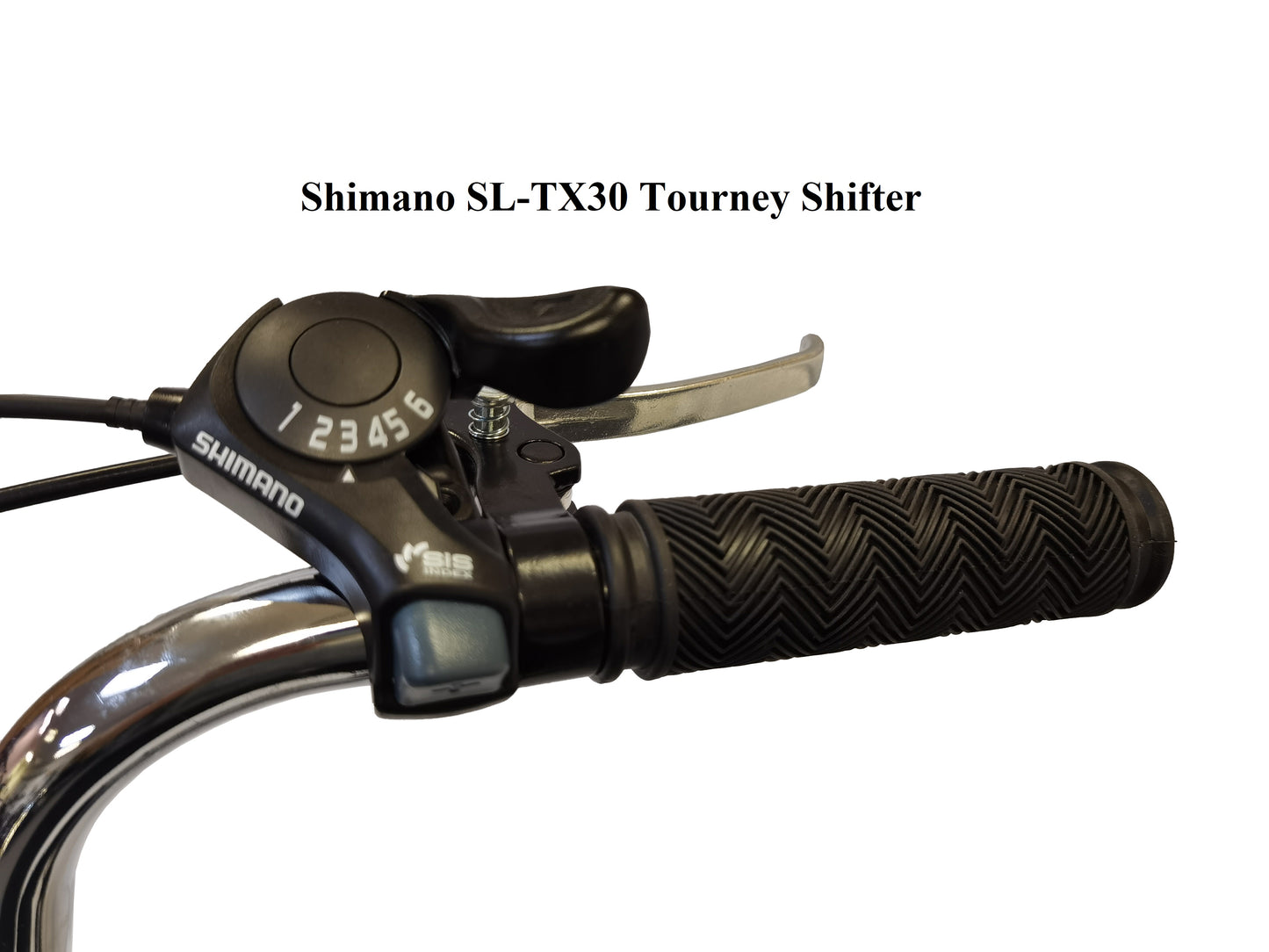

• Shimano 6 Speed Index Shifter

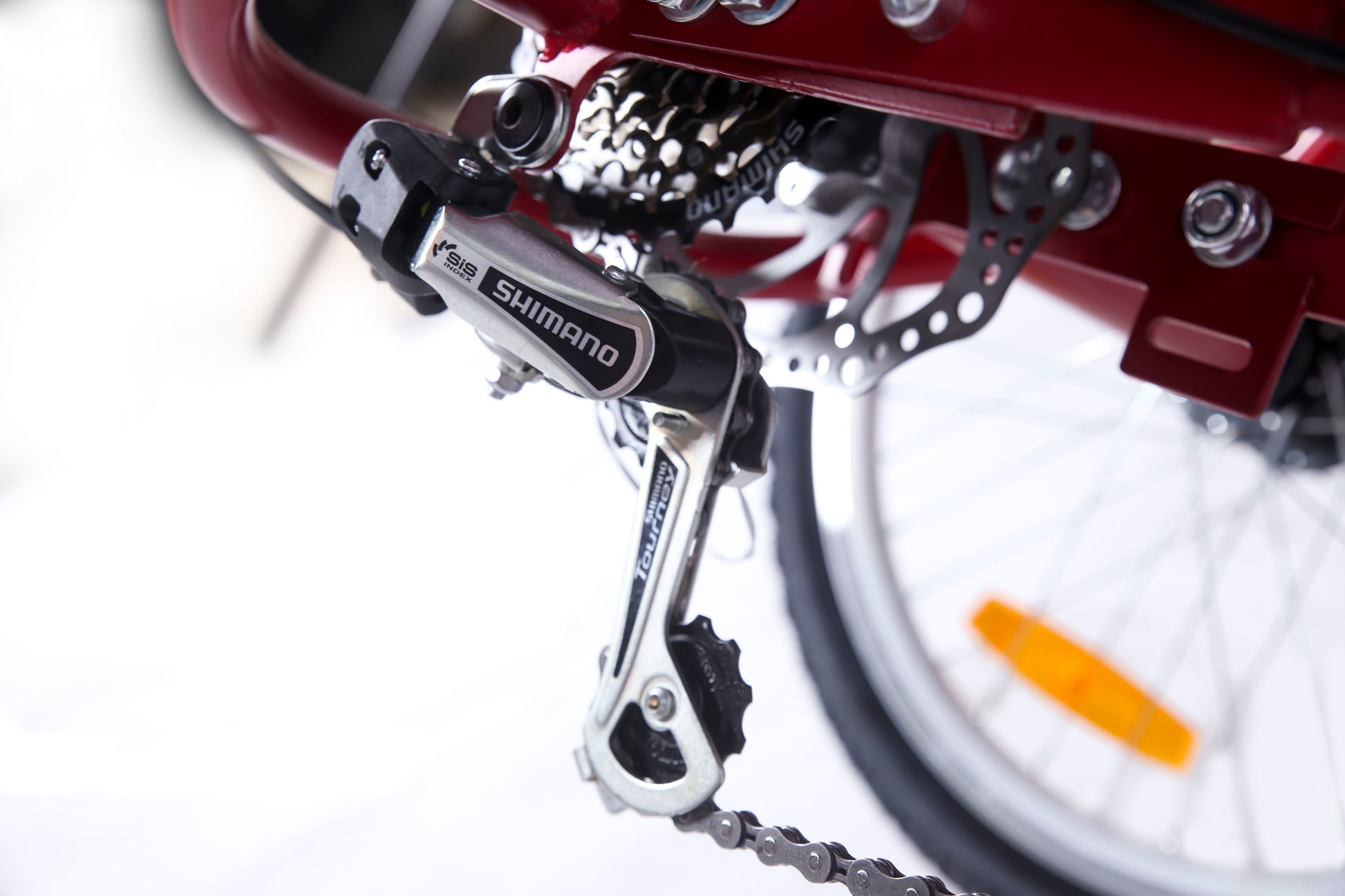

• Shimano 6 Speed Derailleur / Free Wheel

Accessories:

• Steel Fenders: Front and Rear

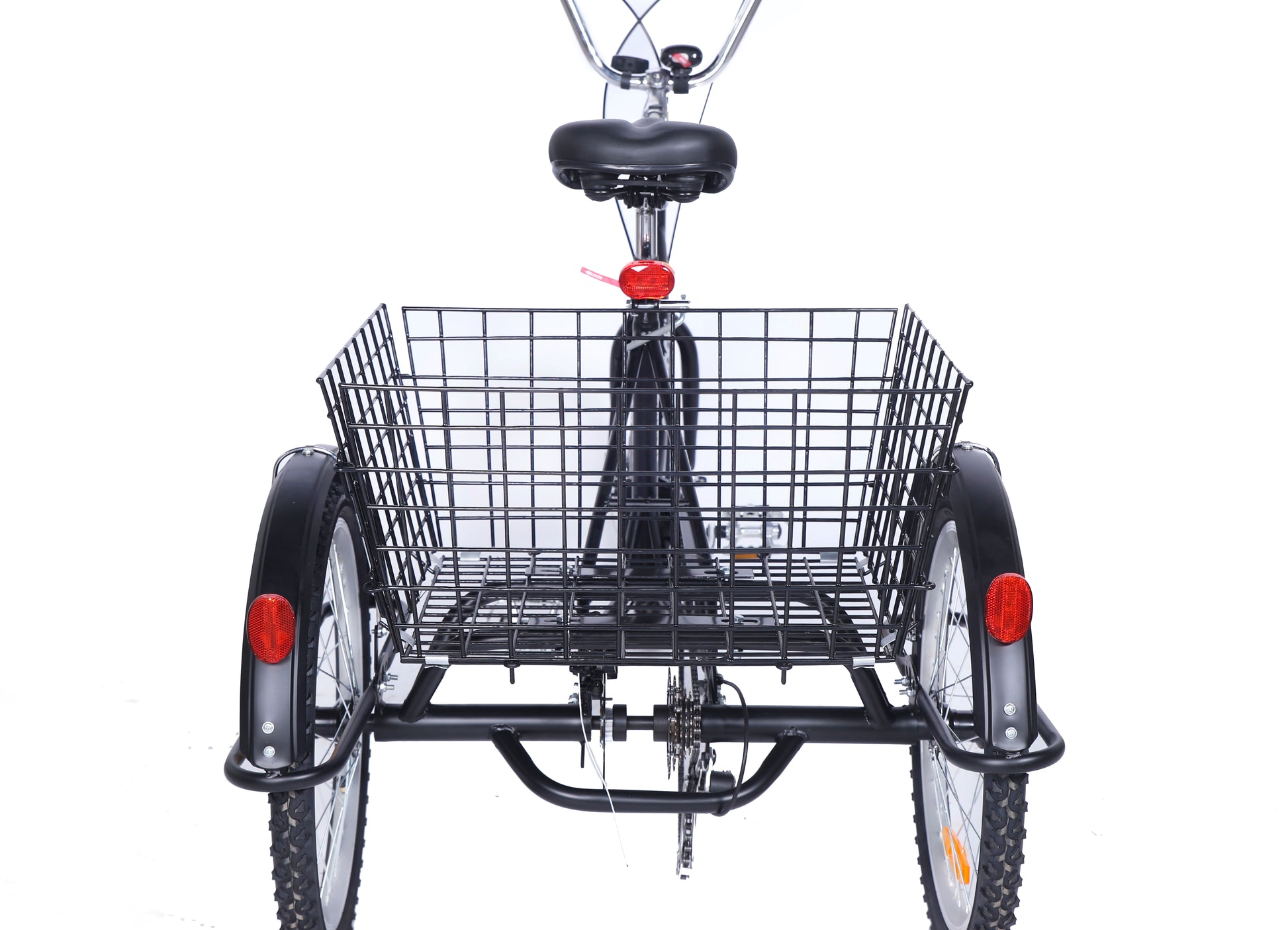

• Rear Basket: Alloy high-strength steel, ED BK

• Bell: BK

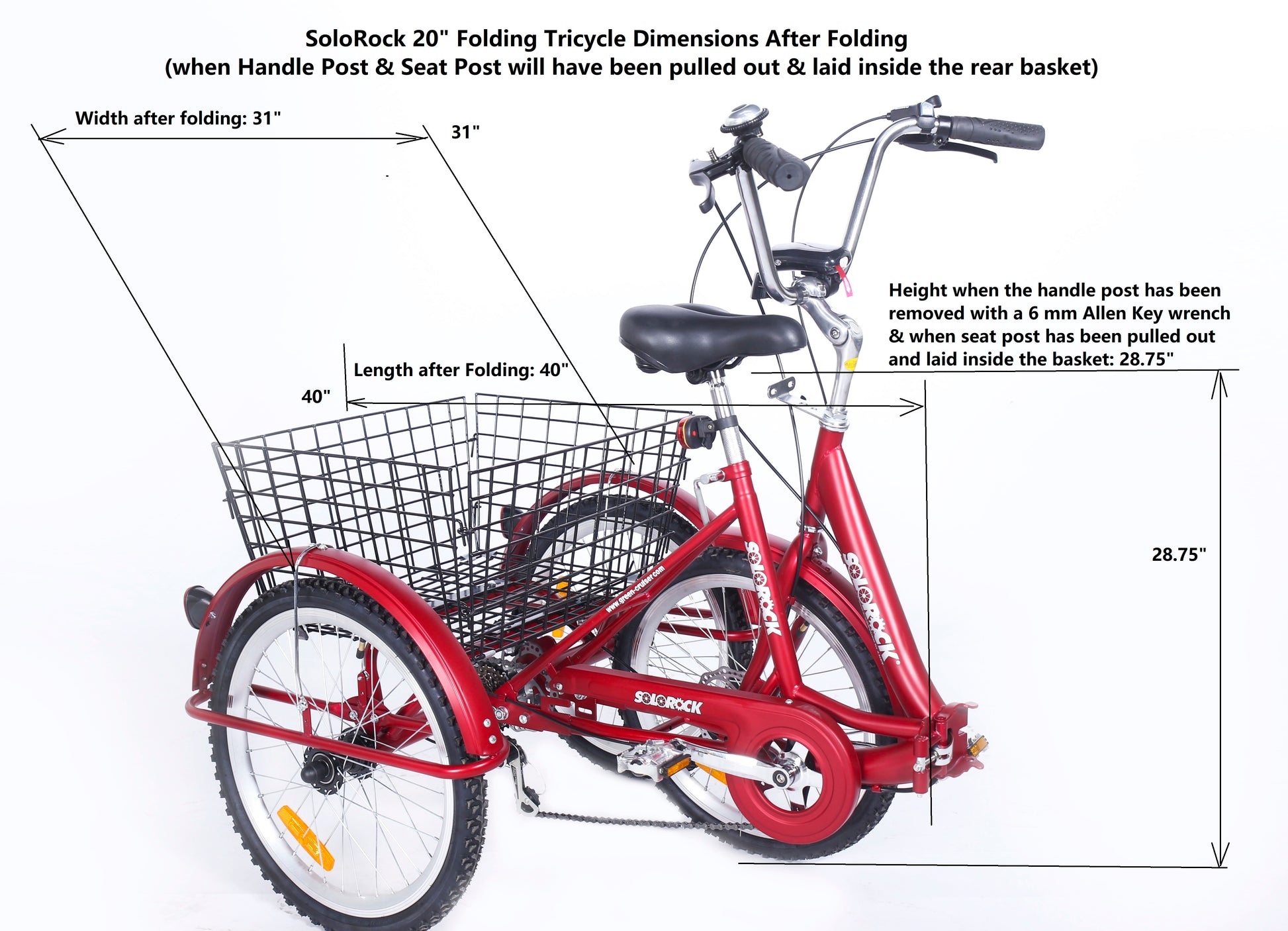

Dimension & Weight after assembly:

Dimension: 80 W x 140 L x 140 H (cm)

Weight: 22.5 kg ( 50 lbs)

Distance from the ground to the top of the saddle (seat):

28.75" (73 cm) min.

39" (99 cm) max.

Packaging:

• Gross Weight: 30 kg (66 lbs)
• Carton Dimensions: 103 x 33 x 57 cm (40.5” x 13” x 22”)

Color:

• Matt Black; Pearl Orange; Metallic Blue; Matt Red, Pearl White

Parts / Components List:

The package contains the following major individual parts / components:
1. The tricycle frame

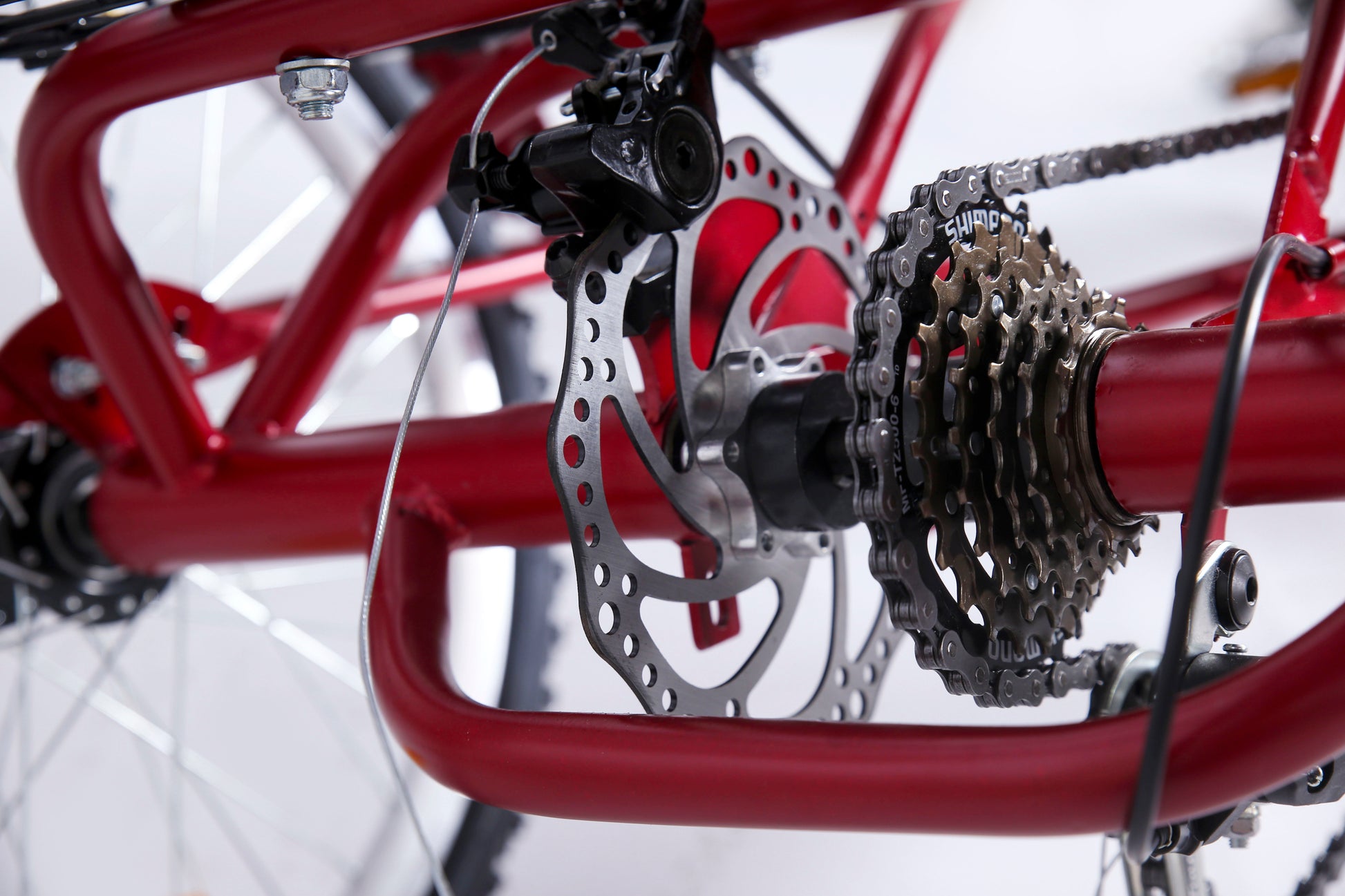

2. The rear axle assembly (rear disc brake rotor, rear disc brake calibre, the 6 speed gear have already mounted onto the rear axle)
3. The front wheel (disc brake rotor already mounted on the hub)
4. The rear drive wheel
5. The rear passive wheel
6. The handle with handle post (brake levers, and the shifter with derailleur cable are already mounted on)
7. The chain
8. The pedals (remember left pedal has to be installed onto the left side crank, and the right pedal onto the right side crank)
9. 3 x cable housings (derailleur cable housing, front brake cable housing with cable, rear brake cable housing with cable)
10. 3 x fenders
11. 2 x rear fender stays, 2 x rear fender mounting rack
12. The 5-Pcs type of rear basket, and related mounting parts (mounting parts already on rear axle assembly)

Warranty:             12month Frame, Parts Wearing Excluded
