• Not assembled, customer needs to get the tricycle assembled locally

• 4 Lovely Frame Color Options

• Upgraded to Disc Brakes, photos to be updated

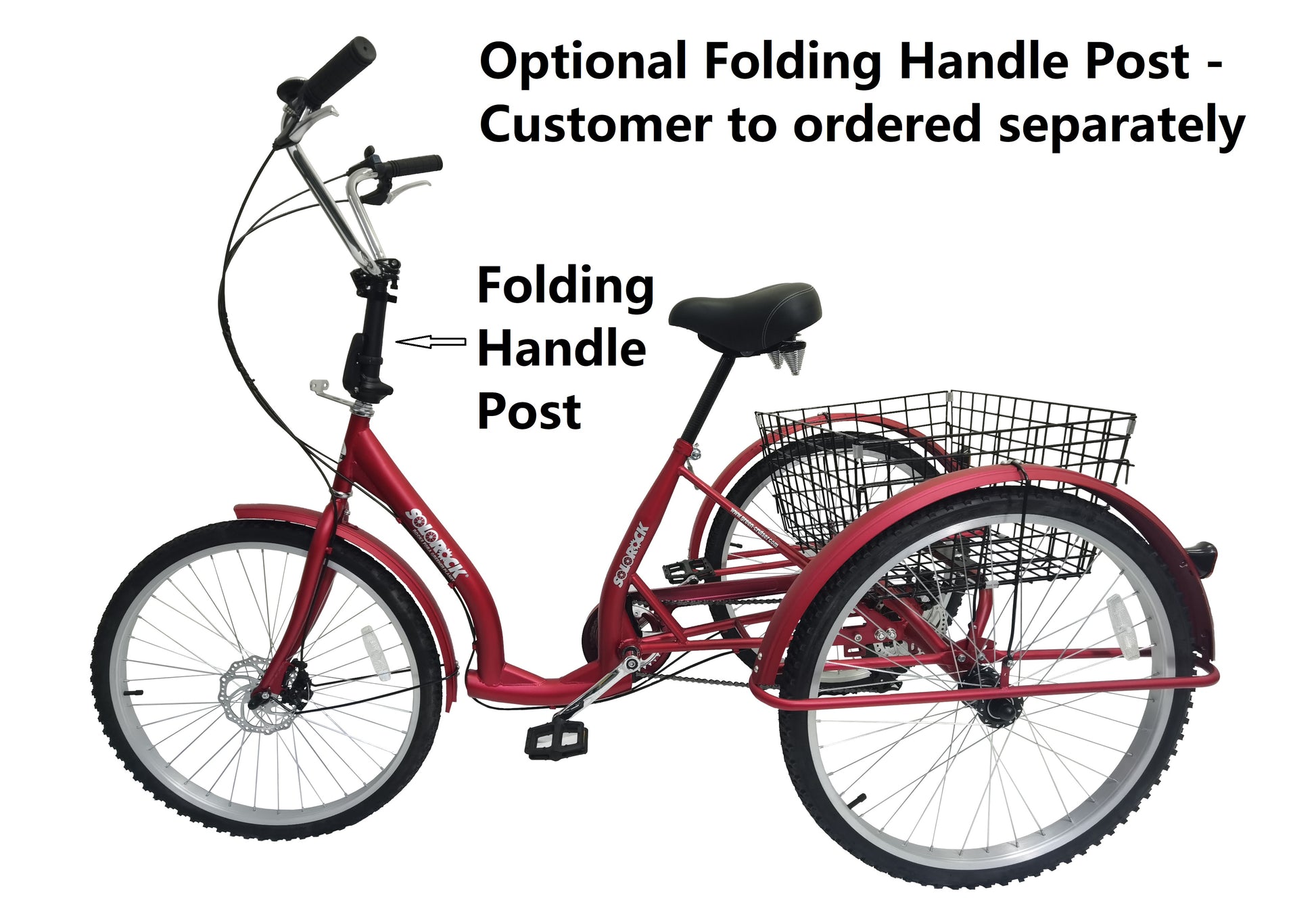

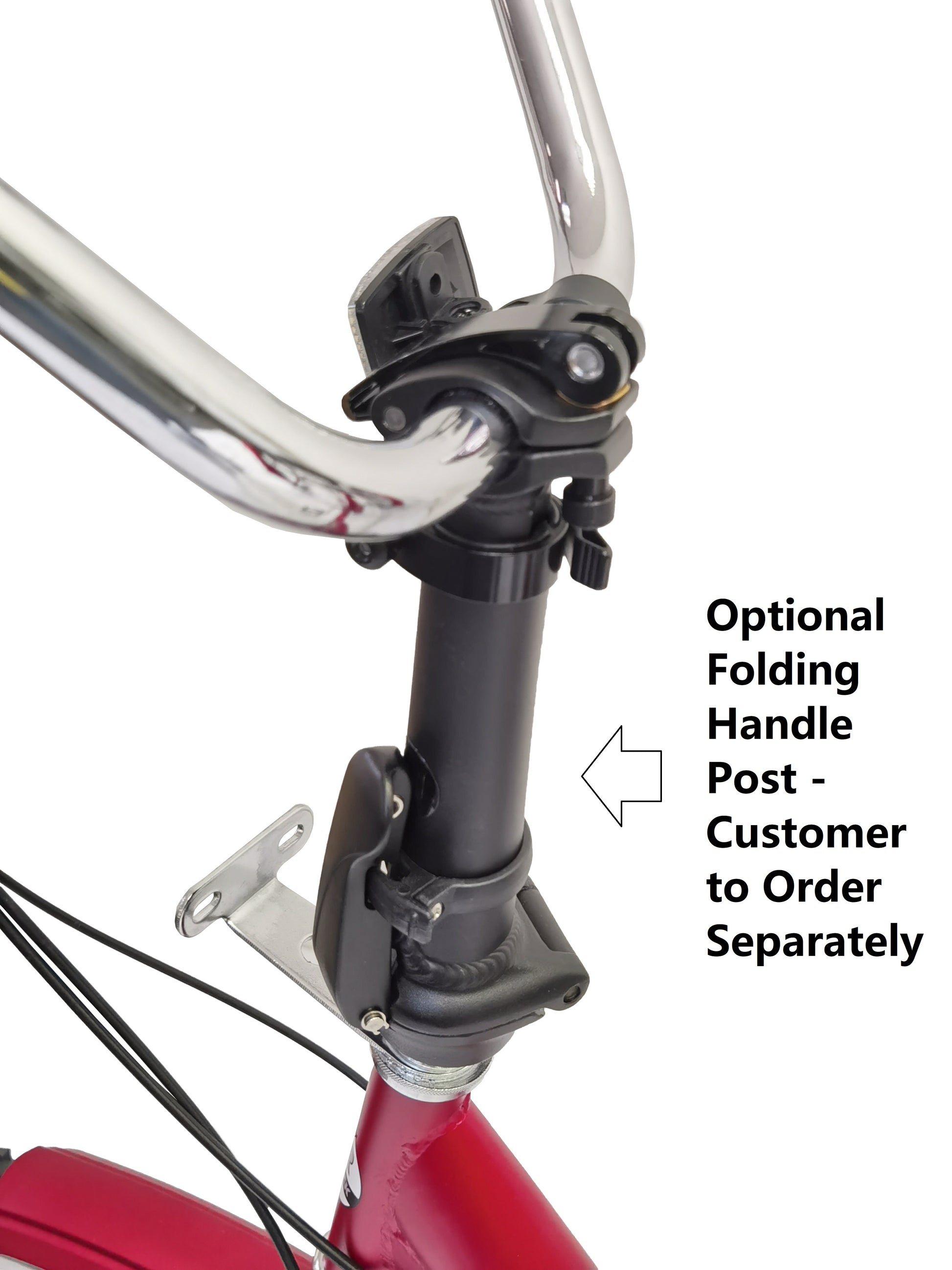

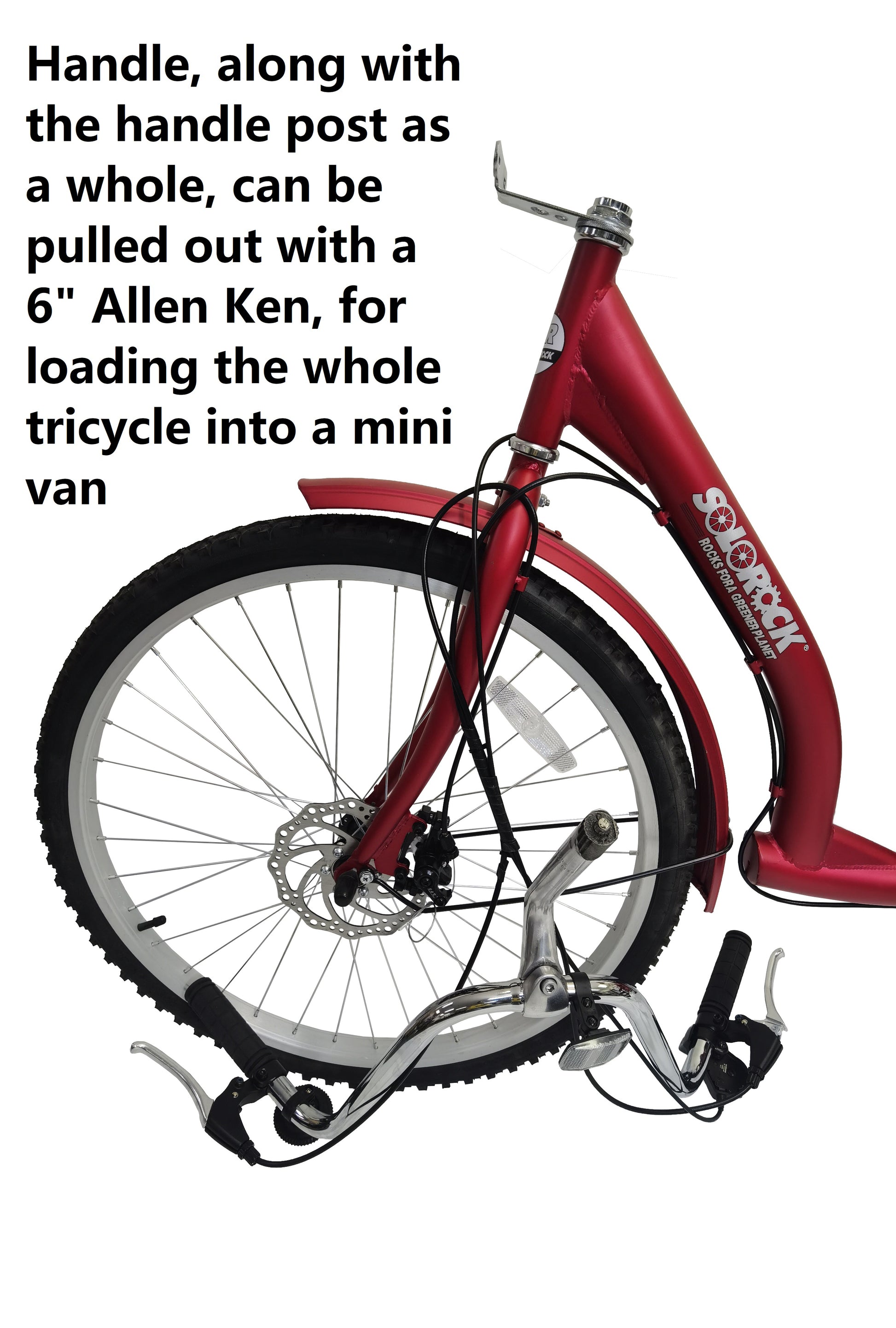

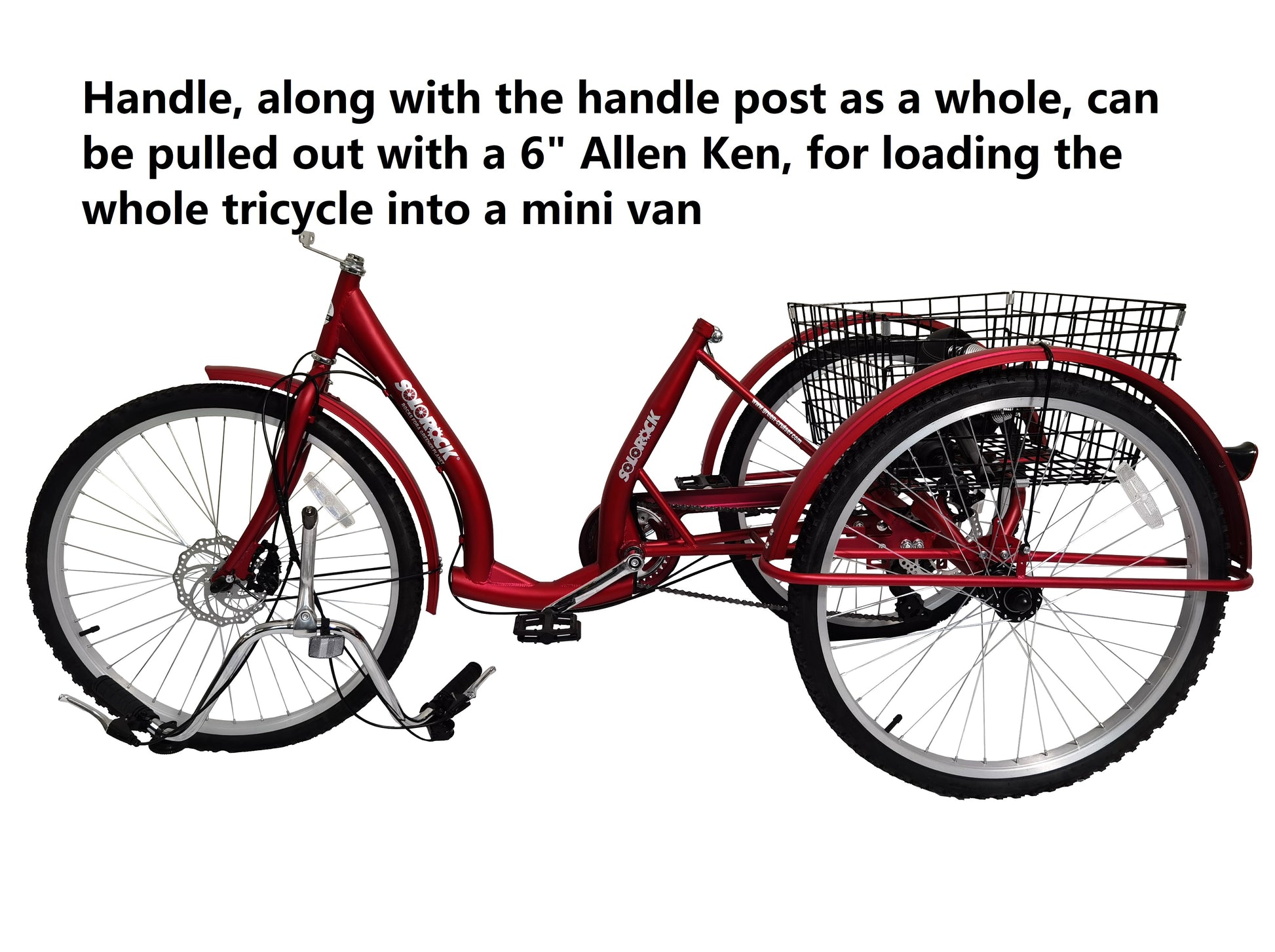

• Optional Item (not included): Folding Handle Post - for easier loading into a SUV, a Mini Van for travelling / camping. Please order "SoloRock tricycle folding handle post" separately
•

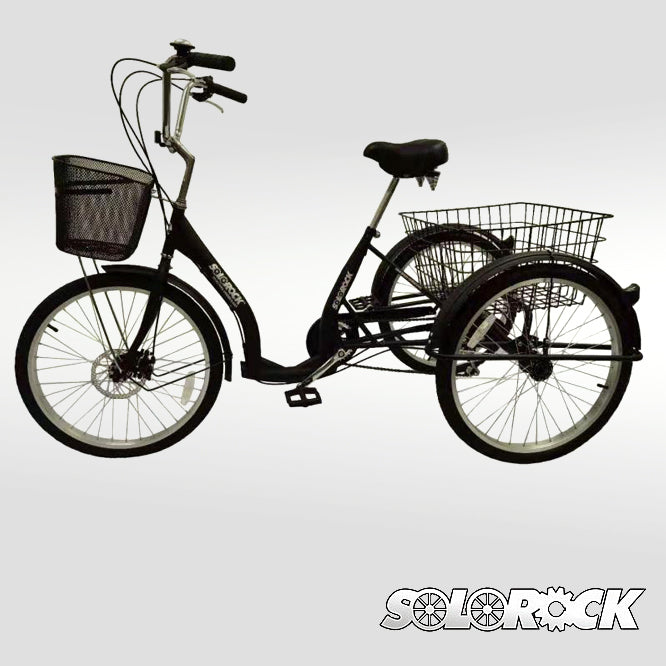

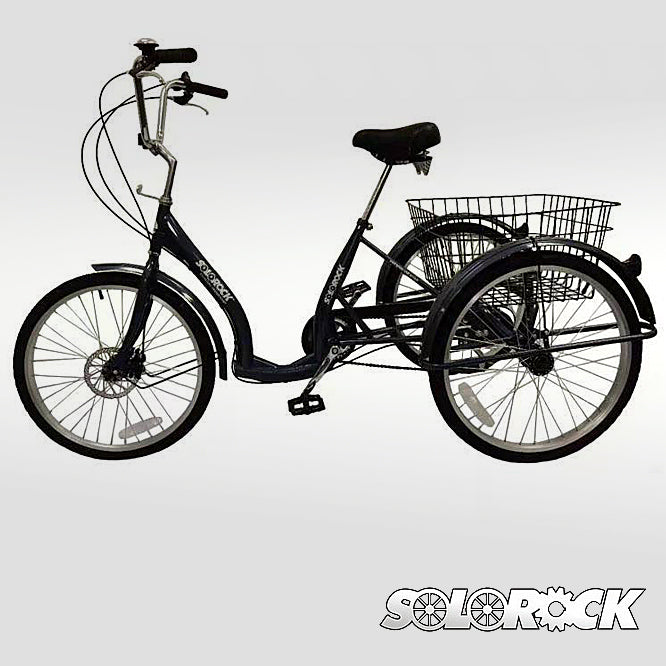

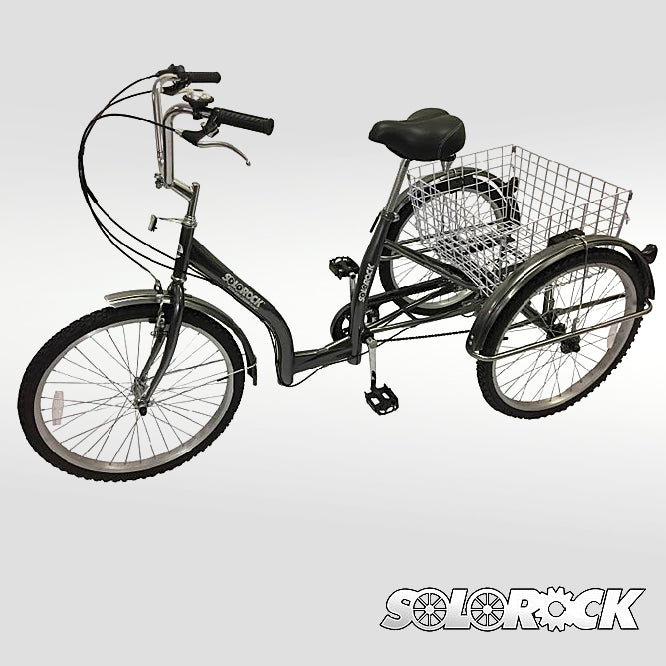

Model: Ugile246 (not assembled)

Frame: 24" Steel (24" Wheel Size)

Speed: 6 Speed Shimano

Brand:

Tricycle Assembly Video link:

https://www.youtube.com/watch?v=NkazinNwbyI

Assembly Service Order Link (please don't order our assembly service if the trike needs to be shipped):

https://solorock.ca/products/solorock-tricycle-assembly-service

Features:

• 24" Wheel U-frame, Easy cross-over
• 6 Speed Shimano Gear
• Disc Brakes

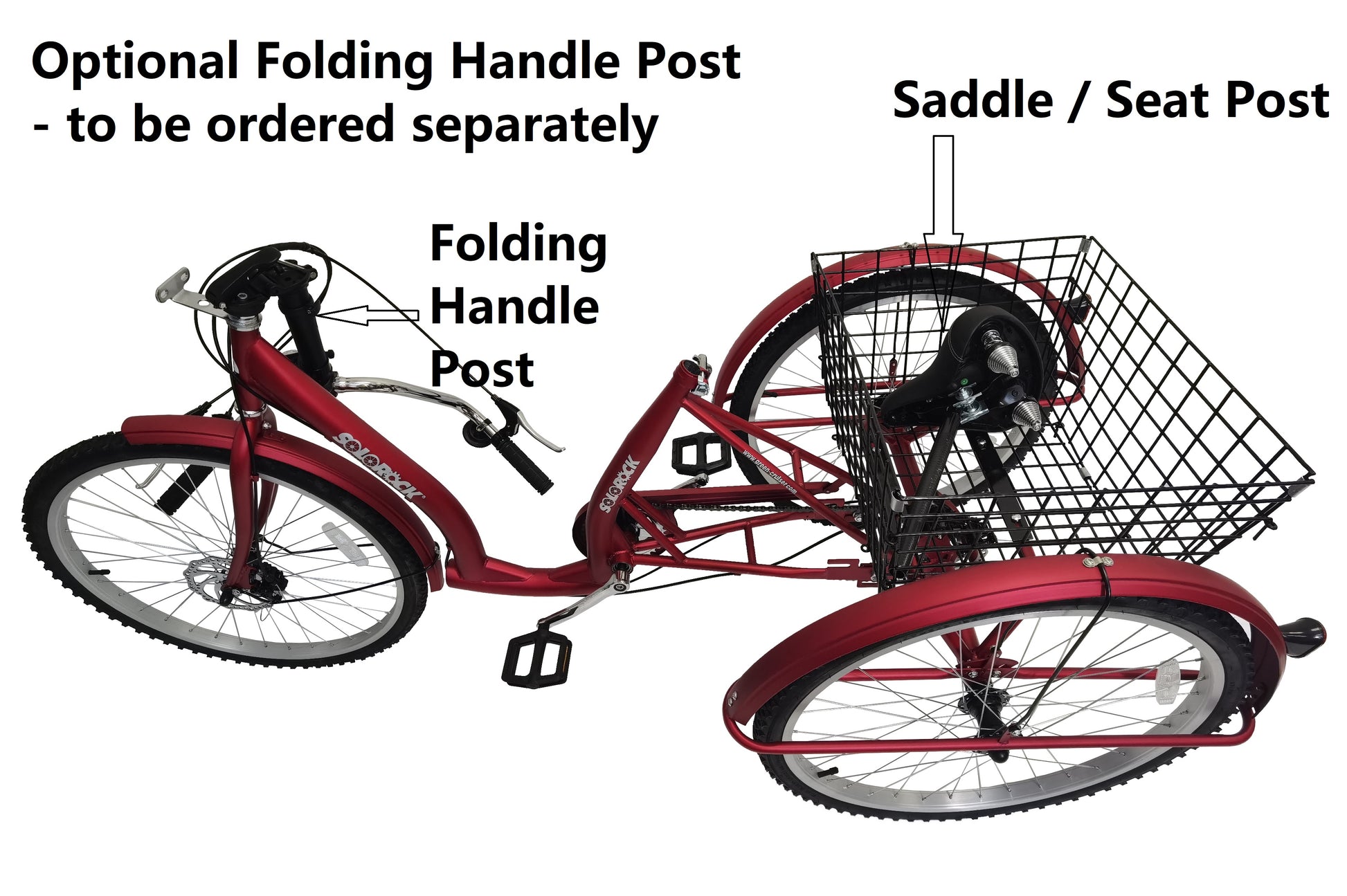

• Optional Folding Handle Post for easier access to a SUV, Mini van - to be ordered separately https://solorock.ca/products/solorock-tricycle-handle-post-aluminum-folder?_pos=1&_sid=712a20dde&_ss=r

Frame/Fork:

• 24” Steel

Brakes:

• Upgraded to Disc Brakes - photos to be updated

Wheels:

• Rims: Anodized 6061 Aluminum, Silver or BK

• Spokes: 36 x 14G High Tension Steel UPC
• Tires: 24” x 1.75” Kenda

Transmission:

• Shimano 6 Speed Index Shifter
• Shimano 6 Speed Tourney Derailleur / 6 Speed Free Wheel
• Bottom Bracket: Upgraded to Maintenance-free Single Cartridge

Accessories:

• Steel Fenders: Front and Rear
• Front Basket: Optional (not included)
• Rear Basket - Included. Approx. dimension:
• Bottom L x W: 41 x 40  (cm), or 16-1/8" x 15-3/4"
• Top L x W: 54 x 51 (cm), or 21-1/4" x 20-1/16"
• Height H: 29 cm, or 11-7/16"
• Bell: BK
• Optional Folding Handle Post for easier access to a SUV, Mini van - to be ordered separately https://solorock.ca/products/solorock-tricycle-handle-post-aluminum-folder?_pos=1&_sid=712a20dde&_ss=r
• Decals: Undercoating

Dimension & Weight after assembly:

Dimension: 84 W x 180 L x 150 H (cm) or 33" x 71" x 59"

Weight: 25 kg (55 lbs)

Packaging:

• Gross Weight: 27 kg (59 lbs)
• Carton Dimensions: 112 x 33 x 65 cm (44” x 13” x 25”)

Color:

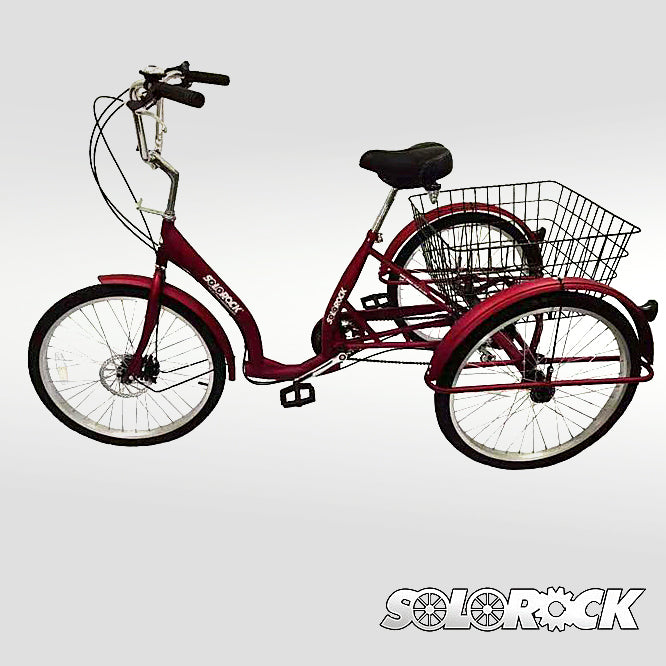

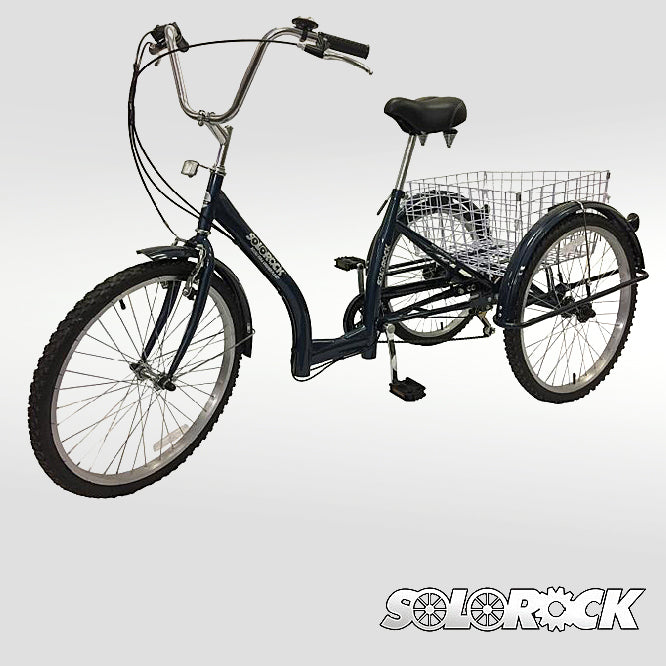

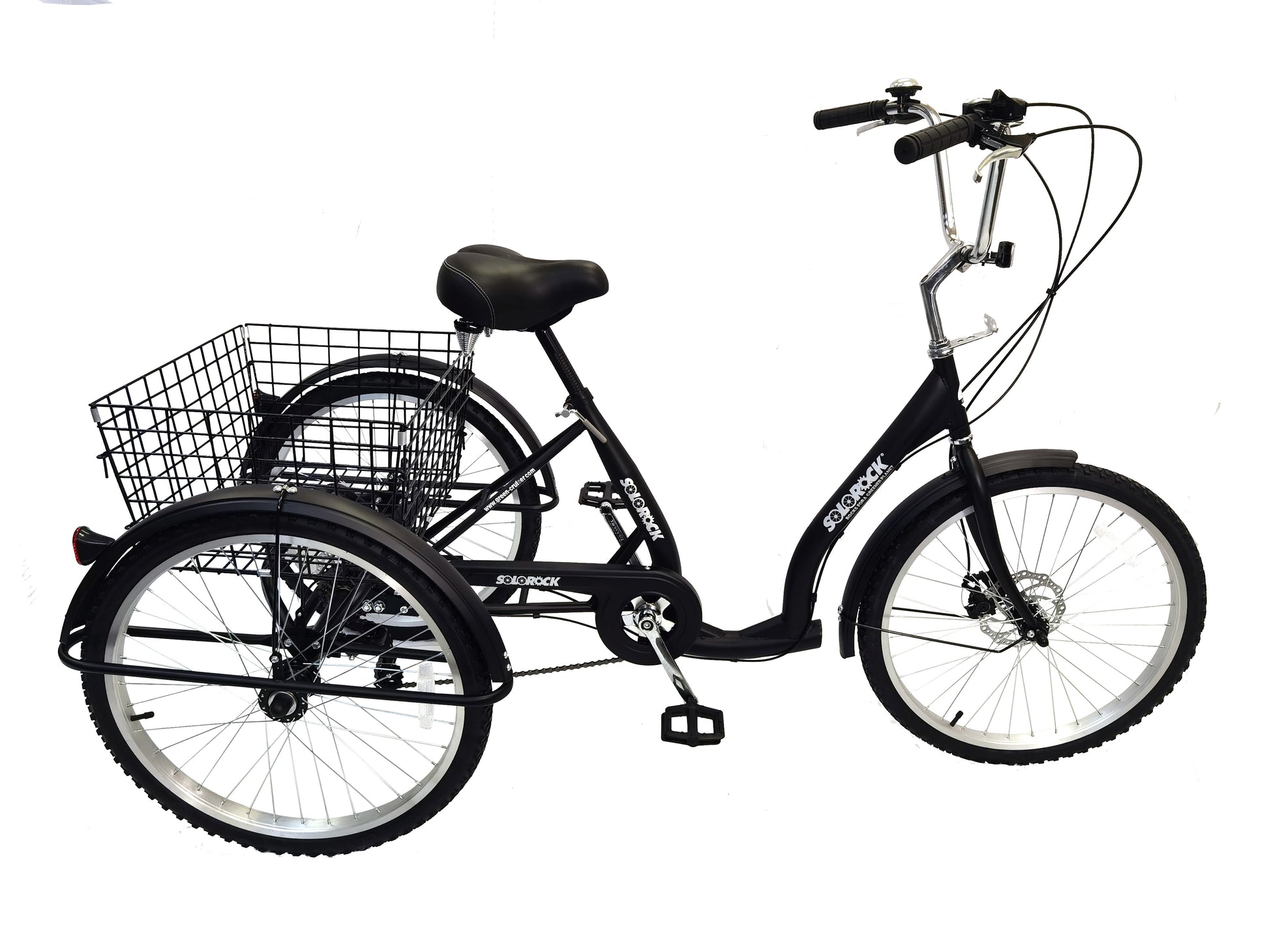

• Matt Black; Pearl Orange; Metallic Blue; Carmine Red (Matt Red)

The package contains the following major individual parts / components:
1. The tricycle frame
2. The rear axle assembly (rear disc brake rotor, rear disc brake calibre, the 6 speed gear have already mounted onto the rear axle)
3. The front wheel (disc brake rotor already mounted on the hub)
4. The rear drive wheel
5. The rear passive wheel

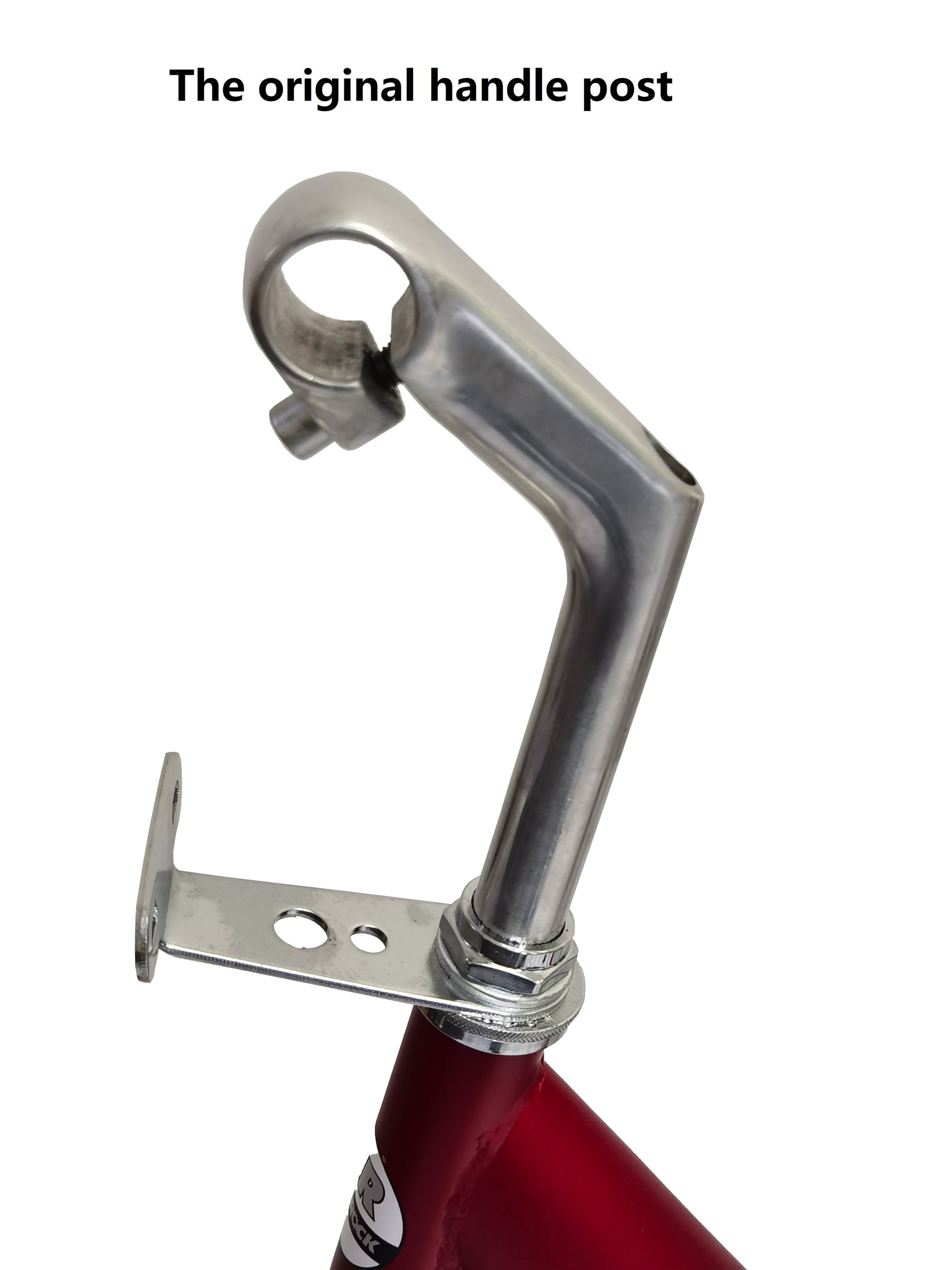

6. The handle with handle post (brake levers, and the shifter with derailleur cable are already mounted on)
7. The chain
8. The pedals (remember left pedal has to be installed onto the left side crank, and the right pedal onto the right side crank)
9. 3 x cable housings (derailleur cable housing, front brake cable housing with cable, rear brake cable housing with cable)
10. 3 x fenders
11. 2 x rear fender stays, 2 x rear fender mounting rack
12. The 5-Pcs type of rear basket, and related mounting parts (mounting parts already on rear axle assembly)

Warranty:             12month Frame, Parts Wearing Excluded
